Planet

The Planet pivot module with drop-down seal

Pivot doors are a real highlight in modern interior design. However, despite their popularity, effective sealing was often associated with high installation costs in the past. The Planet brand is now presenting the innovative pivot module, which has been specially developed for rebated doors. The module extends the field of application of the tried-and-tested Planet US drop-down seal and also supports the unique look of pivot doors. The drop-down seal also ensures optimum sealing against noise, smoke or heat loss.

Pivot module: The topics at a glance

The advantages of the pivot module

The innovative pivot module offers a new level of efficiency for design-oriented doors. It is the answer to the challenges of making pivot doors not only aesthetically appealing, but also functional thanks to a better seal. Better protection against sound, smoke, fire and heat loss not only increases the cosiness in your home, the pivot module in combination with the Planet US drop-down seal becomes a key factor for your safety. There are also other basic advantages:

  • Efficient storage

    Drop-down seal to extend the pivot door, i.e. a small upgrade kit that takes up minimal space.

  • Easy installation

    With installation aid and uncomplicated processing on the door leaf.

  • Narrow door leaves possible



    Seal width of just 8 mm makes pivot door leaves from 60 mm possible.

  • Underlining the design

    For the pivot module, there is a choice between stainless steel and black colours to further underline the design of the pivot doors.

  • Improved accessibility and comfort



    The rotating activator ensures easy operation and reduces the amount of force required for opening and closing.

  • Minimal grinding distance

    Thanks to the late triggering and optional ramp.

  • Versatile length options

    Standard lengths from 335 mm to 1585 mm, can be shortened by 125 mm and extra lengths up to 6 m are available.

  • Guaranteed durability

    Force-decoupled trigger module with over 400,000 cycles.

  • High Swiss quality



    We offer a 7-year warranty on the module.

Planet pivot modulefor rebated doors

Would you like more information about the pivot module for rebated pivot doors, are you looking to convert your existing door and get advice, or do you have questions about a specific product? Please do not hesitate to contact us. Our experts will be happy to advise you.



Get in touch now

Easy installation of the pivot module

Watch our video to discover how easy and quick it is to install the new pivot module.

Questions and answers about the pivot module for rebated pivot doors

  • The pivot module for rebated pivot doors can be combined with the proven Planet US drop-down seal. The module uses a rotating activator in the trigger module, which enables more efficient power transmission.  This minimises lateral forces on the drop-down mechanism and ensures improved operation and greater accessibility.

  • The pivot module has been specially developed for rebated pivot doors. It is also compatible with swing doors with lock-side release.

  • No, the proven Planet US and the new pivot module are available to order from stock at any time. Installation is simple: A 16 mm hole above the 8 mm seal groove is sufficient for mounting the force-decoupled housing. The inner profile extension is then simply pushed onto the inner profile of the seal to upgrade the Planet US for pivot doors.

The Planet brand: Swiss made drop-down seals and finger protection

Planet is a renowned ASSA ABLOY brand that has stood for innovation and quality “Made in Switzerland” for over 70 years. The Planet drop-down seals and finger protection solutions are at the heart of this success. With a tireless drive for progress, Planet has established itself as a global leader in a dynamically growing market for door sealing elements. The products are therefore characterised by the highest quality standards and continuous innovation.

The pivot module transforms pivot doors into a statement in safety, function and design

By seamlessly combining aesthetics and functionality, the pivot module for rebated pivot doors revolutionises drop-down seals not only in terms of design, but also in terms of safety. The new module offers an efficient, durable and visually appealing solution. Make a statement in innovation and quality with the Planet drop-down seal for pivot doors.

Downloads

  • Pivot module brochure

    Find out more about the new pivot module in this brochure.

    To the brochure

  • Planet US brochure

    Find out more about the Planet US drop-down seal here.

    To the brochure

  • Accessible door solutions brochure

    Discover our other products such as the click threshold for accessible building.

    To the brochure

More information

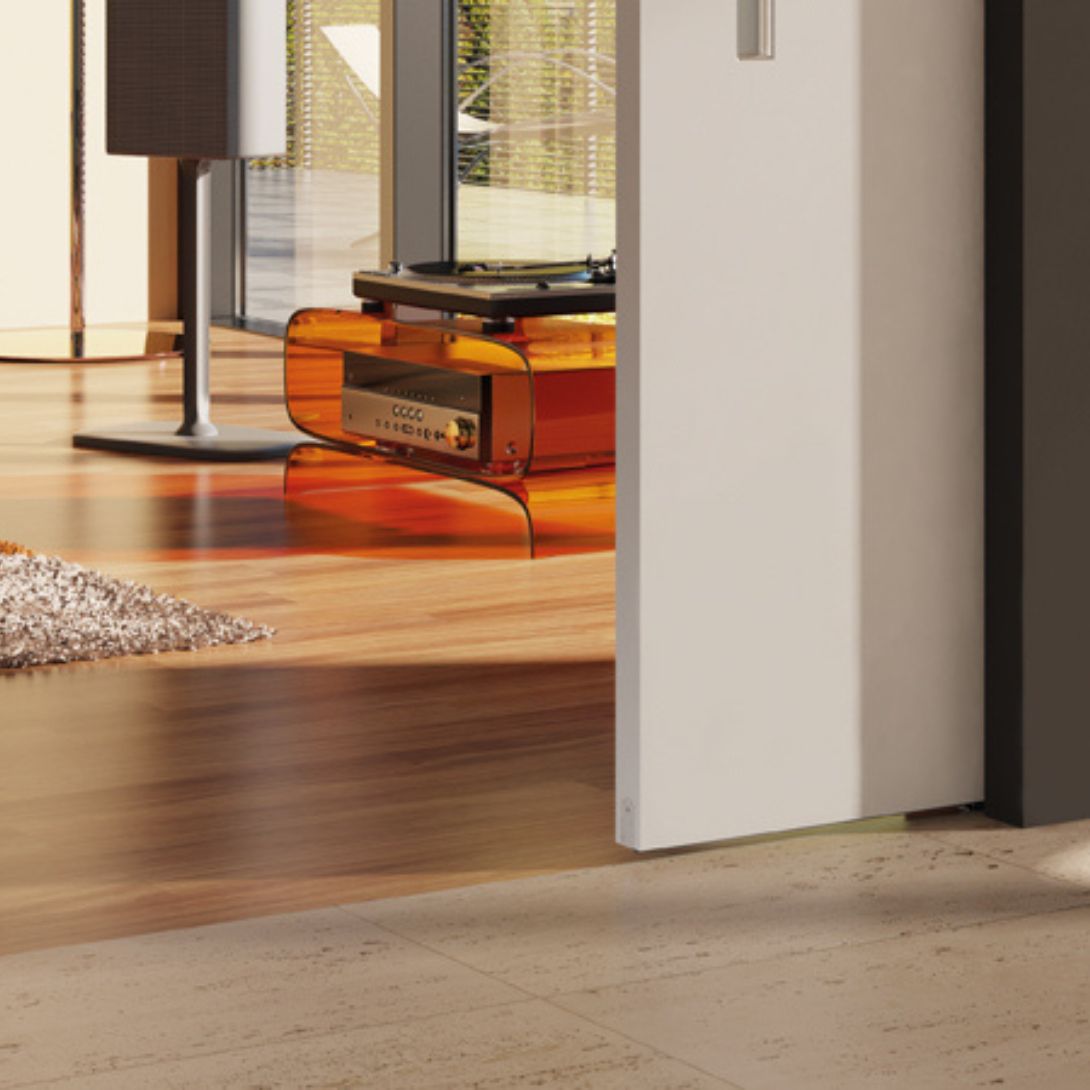

  • Planet drop-down seals
